Description

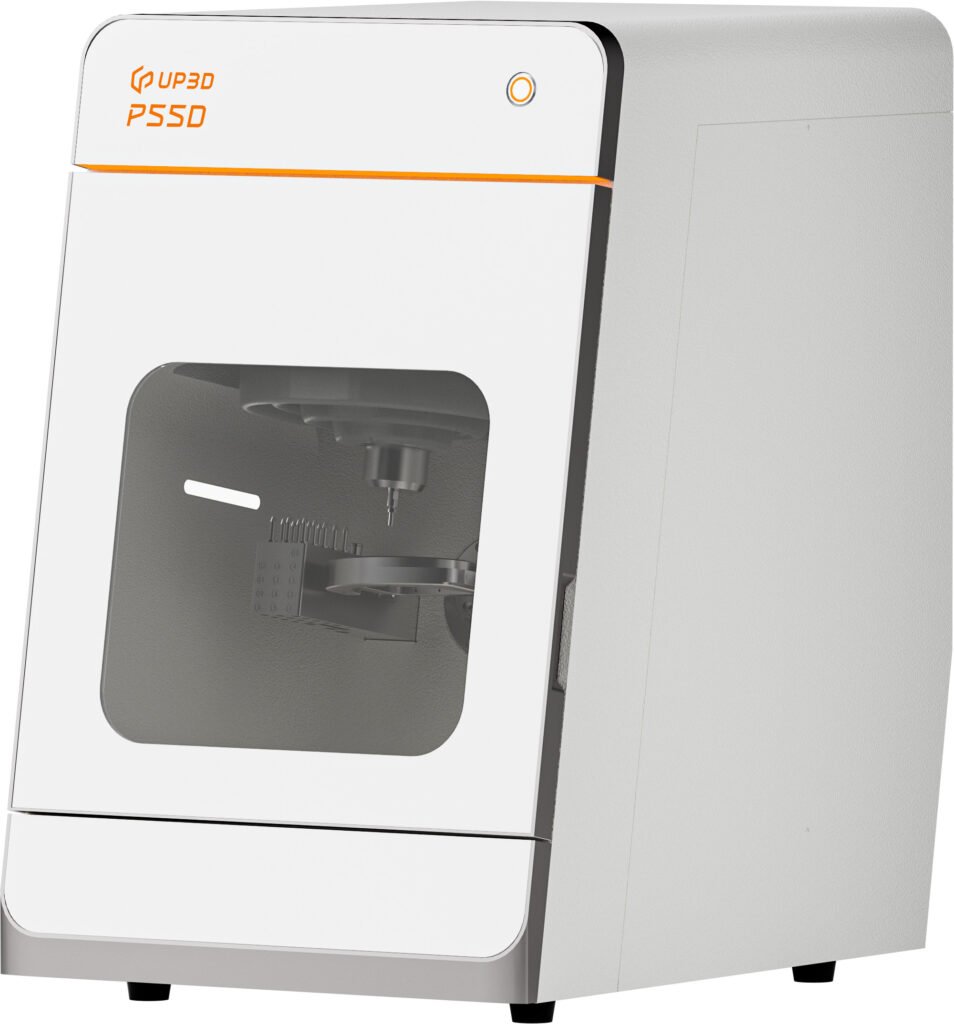

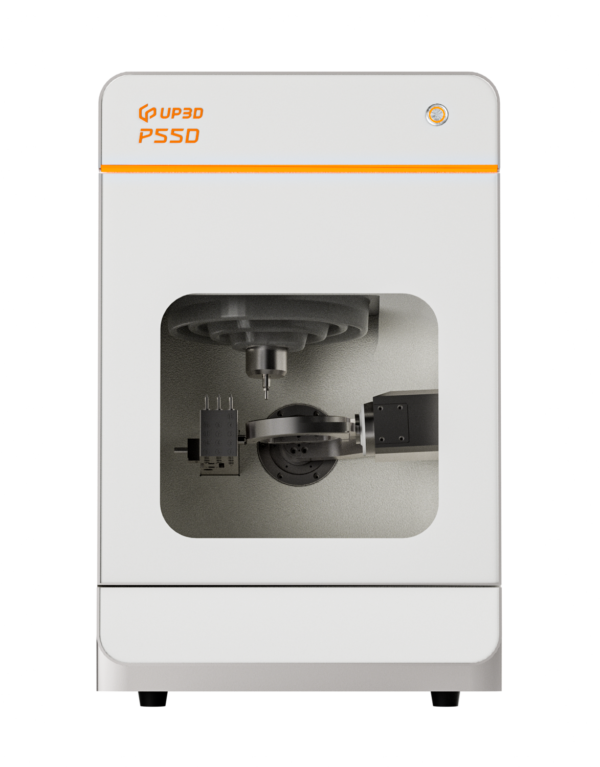

Designed for high-performance dental CAD/CAM milling, this advanced dry milling machine delivers exceptional precision, power, and reliability for modern dental laboratories. With a compact yet heavy-duty design, it provides stable and accurate milling performance for a wide range of dental restorations while maintaining excellent surface quality and efficiency. (UP3D)
Engineered with a high-speed spindle, intelligent servo technology, and an optimized dust control system, it offers a smooth, quiet, and efficient milling experience without the need for an external air compressor. Its plug-and-mill workflow makes it easy to install and operate, making it suitable for both dental laboratories and in-house practice labs. (UP3D)
Key Features:
* Advanced 5-axis simultaneous dry milling technology
* High-speed 60,000 RPM German spindle for precise and stable milling
* Powerful 800W spindle performance for efficient material processing
* No external air compressor required – easy plug-and-mill operation
* Smart Servo technology for vibration reduction and micron-level accuracy
* 13-position Automatic Tool Changer for continuous workflow
* Enhanced dust protection system for cleaner operation
* Built-in ionizer for effective removal of resin particles
* Supports zirconia, PMMA, PEEK, wax, composite resin, and Co-Cr sinter metals
* 90° vertical milling capability for improved anatomical detailing
* Innovative C-clamp design for better disc utilization and complex cases
* Compatible with UPCAM CAM software for optimized milling strategies
* Compact design with high-performance output (UP3D)
Technical Specifications:
* Milling Type: Dry Milling
* Number of Axes: 5-Axis Simultaneous
* Spindle Speed: Up to 60,000 RPM
* Spindle Power: 800W
* Tool Capacity: 13 Tools
* Disc Size: 98.5 mm diameter (10–30 mm thickness)
* Materials: Zirconia, PMMA, PEEK, Wax, Composite Resin, Co-Cr Sinter Metal
* Rotary Axis: A-axis 360°, B-axis ±33°
* Dust Extraction Flow: 2500 L/min (UP3D)
Applications:
* Crowns & Bridges
* Implant Restorations
* Full-Arch Prostheses
* Veneers
* Inlays & Onlays
* Denture Frameworks
* Implant Bridges
* Esthetic Restorations
Combining industrial-grade precision with user-friendly operation, this milling solution helps dental laboratories achieve faster production, superior accuracy, and consistent restoration quality. (UP3D)
